EMR-A, FCD

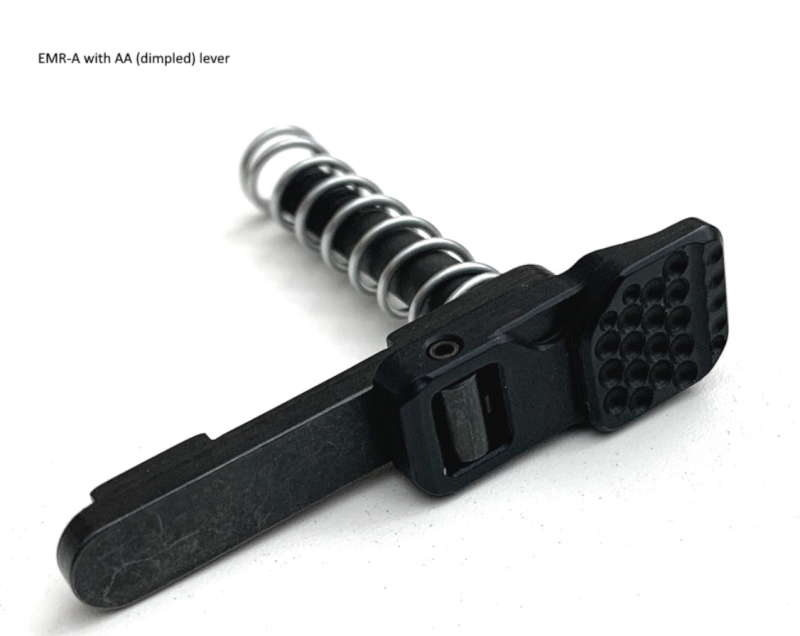

EMR-A är en förbättrad och dubbelsidig magasinsspärr från Forward Control Design.

Tillverkaren har flera versioner av denna och många andra av sina produkter men det är inte praktiskt möjlighet att lagerhålla hela deras sortiment. Vi har därför valt att bara ta hem de versioner vi tycker är allra bäst. För denna är det "dimpled standard length".

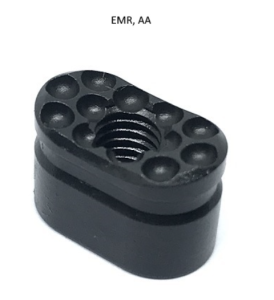

Denna produkt är den del av magasinsspärren som är "blind" på den vänstra sidan på en vanlig AR-15 lower. Den skall kombineras med din vanliga magasinsspärrsknapp på den högra sidan. Denna produkt kan även kombineras med FCD:s egen magasinsknapp EMR-H. Se relaterad produkt nedan för denna. Om du köper denna till en "naken" lower som du sätter ihop själv, glöm inte att lägga till en knapp för den vänstra sidan, FCD:s egen eller någon annans.

OBS - läs informationen från tillverkaren nedan. Denna magasinsspärr är utvecklad för att fungera med TDP (Technical Data Package) lowers och att på dem ge en dubbelsidig funktionalitet ("ambi"). En del tillverkare lägger dock till en del yttre ändringar på sin lowers som kan göra dem inkompatibla med denna magasinsspärr.

Från tillverkaren:

NOTE:

Do not use anti-rotation pins, most of them do more harm than good, they're also mostly incompatible with EMR-A.  A properly designed trigger doesn't need them.   For more info on anti rotation pins, visit this link: https://www.forwardcontrolsdesign.com/anti-walkanti-rotation-pins.html

Due to the lack of standards for 308 ARs, with every manufacture specs differing from another, we do not recommend EMR-A for 308 ARs.

EMR-A was designed for TDP spec forged lower receivers, if your lower is billet with thick walls, or differ a great deal from TDP specs, please contact us regarding compatibility.

EMR-A is a long in development ambidextrous magazine release for .223  AR receivers.  Original concept and design was complete in 2015.  After numerous changes to the mag catch geometry and lever shapes,  final design was made into working prototypes in 2017, and first shown in public at Cola Warrior West III.EMR-A is an ergonomic ambidextrous magazine release.  The placement of its lever is well thought out to closely mirror the magazine release button on the right side.  The portion immediately below the bolt catch's lower paddle has a lower profile to avoid interference, heretofore a common drawback of popular ambidextrous mag catches, it is also left smooth.  The serrated length of the lever is split into a shallow V shaped serrations (80%) that conform to the curvature of the user's finger, and straight serrations (20%) that form a natural index point, and provide additional traction.  We refer to the design as Multi-faceted Control Surface, the difference MCS makes has to be felt to be fully appreciated.

Two lever options are available.  Standard and Extended Reach (about 0.09" longer than standard).  Force amplification achieved from a lever means the extended reach lever is easier to reach, it's also easier to press than the standard lever.  For users with small hands or shorter fingers, the extended reach lever makes the EMR-A a joy to use.  For duty and defense ARs, we recommend the standard lever.

A 10.9lb rated magazine catch spring is included with each EMR-A.  We've long considered the standard magazine catch spring to be rather weak (rated at 8.3lb), accidental / unintended mag drops can take place if a user slings his weapon, and has gear and pouches on the vest.  A stiffer mag catch spring mitigates these risks, thus it is an integral part in the EMR-A package.

EMR-A is available as a part of bundled products (please see drop down menus for options).  EMR-A's catch is made from CNC machined 4140 steel and black nitride coated, its lever is 7075 aluminum and Type 3 hard coat anodized.  The roll pin has a shear strength of 800lbs.

Standard for EMR-A, Nov. 2019 and onward
The LP (low profile) mag catch shaft option reduces the mag catch shaft length by a full revolution, or 0.03.  The LP option on the EMR-A (not available for serrated lever EMR-A till mid 2020) reduces the installed height of the right hand mag release button, resulting in a right side mag release button that sits below the mag release fence.  This is our latest step to mitigate accidental / unintended mag drop risks.

The LP on the EMR-A will not reduce the EMR-C's installed height on an AR15/M16 to the point where EMR-C doesn't constitute accidental / unintended mag drop risks.  The LP option's shorter mag catch shaft aims to reduce the installed height of a TDP spec mag release button (such as our EMR), it isn't a solution for extended mag releases, the installed height of which would require a drastically shorter shaft to offset.

(Bildtexten ovan är något missvisande. Knappen på bilden är en egen produkt som heter EMR-H. Syftet med bilden är att visa hur högt magasinsknappen kommer med de två olika versioner av denna magasinsspärren. Vi säljer endast den version som kommer med "LP Magazine catch shaft", så ditt montage kommer alltså att likna (men med din egen magasinsknapp) den vänstra bilden. Om du vill ha samma lösning som på bilden behöver du komplettera med magasinsknappen EMR-H)

Notes:

* EMR-A's lever pivots on the receiver.
* EMR-A needs to be removed before installing / removing the trigger.  EMR-A is installed and removed in the same manner as a factory mag catch.

* Please wear eye protection while installing EMR, EMR-C, and EMR-A with the 10.9lb mag catch spring, there's considerable spring tension in the 10.9lb spring.

Incompatibilities:

* Due to lack of standards for 308 ARs, EMR-A will not work with all 308 AR style lowers.

* Geissele's Maritime Bolt Catch.  Material from either the top edge of EMR-A's lever, or the bottom edge of Maritime Bolt Catch's lower paddle may need to be removed for both to work together.  The close proximity of these two control surfaces makes this combination less than ideal.

* CMC's anti walk pins

* KNS Gen 2 anti-rotation trigger/hammer pins.  KNS Gen2 Mod2 and Gen JJ, and Gen ST (Spikes Tactical) are compatible with EMR-A with standard lever, but not with extended lever. Gen2 Mod2's pins connecting bar may require minor fitting on thicker receivers to create adequate clearance for the EMR-A's lever when pressed.

* HK 7.62mm AR style rifles, MR762 series.

* Aero 308 AR lower receivers.

* Hodge Defense Mod 2  lower receivers.

* APF side folder lowers

* 17 Design billet lowers

* Uintah Precision lowers

* Silencer Co SU 4766 lowers

* Battery assist device levers.
* Receivers with the left side fence around the bolt catch and mag catch, such as some CMT, Magpul and AR15.com billet receivers.  EMR-A requires the left side of the receiver to more or less adhere to TDP spcs.

* May not be compatible with Seekins SP223 and AR10 B receivers.
